Samsung WAF Series Interactive Displays

Model: LH75WAFWLNCXXL

Android-Powered Interactive Display Designed for Smart Classrooms, Enterprise Collaboration, Training Environments and Real-Time Multi-User Learning Experiences

75" 4K UHD Interactive Display
Android 14 with EDLA Certification
Octa-Core Performance Architecture
40-Point Multi-Touch Technology
Split Note Multi-User Whiteboard
Annotation On Feature
Integrated Google Services Support
IR Touch Overlay Technology
Built-In 15W × 2 Speakers
Screen Sharing (Up to 9 Devices)
Dual Pen Support
USB-C 3-in-1 (65W PD)
Wi-Fi & Bluetooth Connectivity
OPS Slot Support
Enterprise Device Management Solution

Choose your size

65 75 86

The Samsung WAF Series Interactive Display is engineered to create collaborative and intelligent learning environments through advanced interactive display technology and enterprise-grade performance architecture. Designed for classrooms, training centers, institutions and collaborative business environments, the WAF Series combines Android-powered flexibility with real-time multi-user engagement capabilities.

Powered by Android 14 and Google EDLA certification, the WAF Series provides access to familiar Google services and educational applications while delivering smooth operational performance through its octa-core processing infrastructure. Samsung’s interactive ecosystem enables seamless annotation, screen sharing, split whiteboard collaboration and centralized device management for modern educational and enterprise communication environments.

Powered by Android™ and EDLA Certification

The Samsung WAF Series operates on Android 14 with Google EDLA certification, creating a familiar and customizable user environment for educational and collaborative applications.

The platform supports:

Google Play Store
Chrome
Google Drive
YouTube
Interactive educational applications
Enterprise collaboration tools

Samsung’s Android-powered ecosystem improves accessibility, workflow familiarity and digital collaboration efficiency across smart learning and training infrastructures.

Powerful Octa-Core Processing Performance

Samsung integrates a powerful octa-core processor architecture into the WAF Series for smooth multi-application performance and responsive interactive functionality.

Internal processing infrastructure includes:

A73 ×4 + A53 ×4 CPU
8GB RAM
64GB Storage
4K graphics rendering support

This enterprise-grade performance architecture enables seamless interactive collaboration and high-efficiency operational performance in demanding educational and enterprise environments.

40-Point Multi-Touch Interactive Technology

The WAF Series supports advanced IR-based 40-point multi-touch interaction, allowing multiple users to collaborate simultaneously on a single display environment.

Samsung’s touch infrastructure supports:

passive pen interaction
multi-user annotation
collaborative whiteboarding
real-time educational engagement
responsive touch navigation

Its low-latency touch architecture enables smooth writing and interactive learning experiences for classrooms and enterprise collaboration environments.

Split Note Multi-User Collaboration

Samsung’s upgraded Split Note mode allows up to four users to work independently within dedicated whiteboard zones simultaneously.

This collaborative infrastructure supports:

shared classroom interaction
group training exercises
collaborative enterprise sessions
interactive workshop environments
simultaneous multi-user annotation

The Split Note ecosystem helps organizations create personalized yet collaborative digital learning and communication environments.

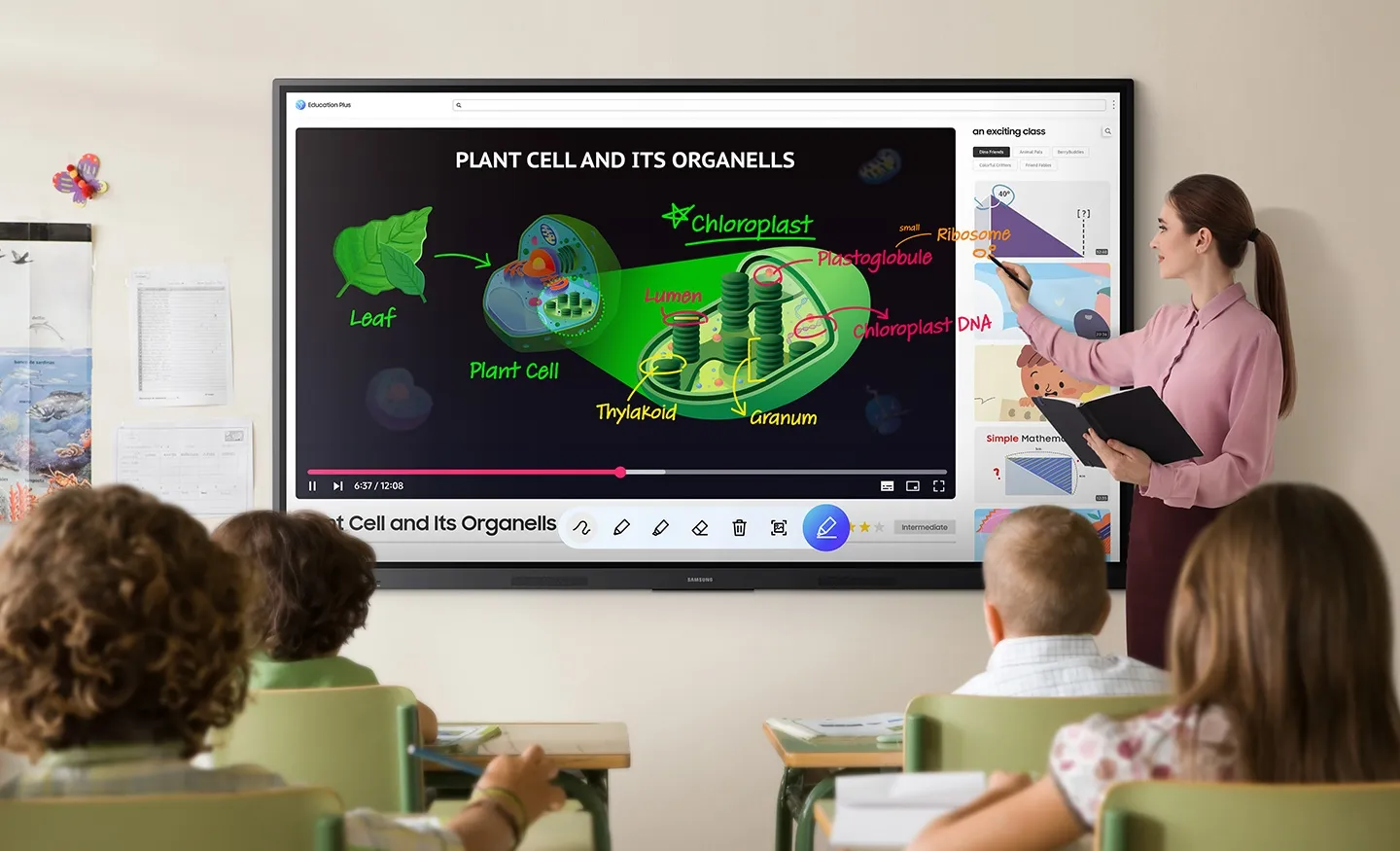

Annotation On Feature

The WAF Series includes Samsung’s always-visible “Annotation” functionality, enabling users to take notes instantly without interrupting on-screen content.

This capability improves:

lesson continuity
meeting collaboration
live discussion workflows
interactive engagement
presentation efficiency

Samsung’s annotation ecosystem enables more fluid and less disruptive collaborative interaction during enterprise and educational sessions.

Enterprise Device Management Solution

Samsung integrates centralized device management infrastructure into the WAF Series for efficient remote monitoring and operational stability.

The management ecosystem supports:

whiteboard management
app administration
remote device control
centralized operational monitoring
enterprise deployment management

This infrastructure improves operational efficiency across educational institutions and multi-device enterprise environments.

Powerful Screen Sharing

The WAF Series supports screen mirroring for up to nine devices, increasing student engagement. Content can be shared on both the large display and individual devices from iOS, Mac, Windows, Android or Chrome OS.

Supported collaboration capabilities include:

wireless content sharing
real-time collaboration
multi-device screen mirroring
hybrid learning support
cross-platform compatibility

Samsung’s collaboration ecosystem enables connected communication experiences for enterprise and educational environments.

Front Connectivity & Quick Access Controls

The WAF Series includes front-facing physical controls and front connectivity architecture for faster operational accessibility.

This infrastructure improves:

classroom usability
collaborative workflow efficiency
quick input access
interactive operational control
simplified user interaction

Samsung’s user-focused design architecture enhances accessibility within fast-paced educational and enterprise environments.

Easy Multitasking

Split screen and multi-window enable teachers to easily display information and multitask simultaneously on the WAF Series. This flexibility provides convenient access to all the screens required to create engaging learning environments.

Key multitasking capabilities include:

split screen display
multi-window support
simultaneous content viewing
enhanced lesson flexibility
efficient information presentation

Dual Pen

The dual pen function enables the use of two different writing tools with no downtime. With the double-sided nib, users can effortlessly switch between two different colors on the front and back side of the pen without changing settings or interrupting the flow of the lesson.

This capability improves:

seamless color switching
uninterrupted teaching flow
collaborative annotation
interactive learning engagement
presentation efficiency

USB-C 3-in-1 Connectivity

Connectivity is enhanced with the 3-in-1 USB-C port, enabling screen mirroring, touch control and external device charging (max. 65W). Teachers can simply connect to the USB Type-C port, allowing them to deliver interactive and engaging lessons without any hassle.

USB-C port functions:

screen mirroring via USB-C
touch control passthrough
external device charging (65W)
single-cable laptop connection
simplified classroom setup

HDMI Out for Extended Displays

With the HDMI Out function, whiteboard screen content can be shared on a different and larger screen in the classroom. This feature ensures teachers can provide a real-time, interactive experience for students who can easily view the screen content regardless of where they sit.

Benefits of HDMI Out:

extend whiteboard to larger screens
real-time content sharing
improved classroom visibility
flexible display configurations
enhanced student engagement

Superior Durability

The WAF Series protects against electrical surges by using a glass fuse and 500V(DC) capacitor that absorbs instant spikes in voltage. It also features anti-humidity glue applied to the critical area of the chipset, making it a valuable tool for schools in high humidity or rainy climates.

Durability features:

glass fuse surge protection
500V(DC) capacitor for voltage spikes
anti-humidity chipset protection
enhanced reliability in wet climates
enterprise-grade build quality

TECHNICAL SPECIFICATIONS

Core Technical Specifications (75" (189 cm))

Category	Specification
Panel Type	IPS
Resolution	3,840 x 2,160 (4K UHD)
Pixel Pitch	0.4296 x 0.4296 mm
Brightness	400 cd/m²
Contrast Ratio	1,200:1
Viewing Angle	178° / 178°
Response Time	8 ms
Color Gamut	72%
Glass Haze	25%
Operating Hours	12/7
Touch Technology	IR
Touch Points	40 Points
Touch Pen Type	Passive Pen
Touch Response Time	≤ 5 ms
Touch Latency	≤ 45 ms
Min. Object Recognition	2 mm
Operating System	Android 14
Processor	A73 x 4 + A53 x 4
RAM	8 GB
Storage	64 GB
HDMI	HDMI 2.1 x 2
HDCP	HDCP 2.1
USB-C	USB-C (3-in-1, 65W PD)
USB 2.0	USB 2.0 x 2
USB 3.0	USB 3.0 x 2
Audio In	Stereo Mini Jack
Audio Out	Stereo Mini Jack
HDMI Out	Yes
Touch Out	Yes
RS232C	Yes
RJ45	Yes
Wi-Fi	Wi-Fi 5 (802.11ac)
Bluetooth	Yes
OPS Slot	Yes
Speaker	15W x 2
Power Supply	AC 100-240V, 50/60 Hz
Power Consumption (On)	450 W
Power Consumption (Sleep)	0.5 W
Set Dimensions (W x H x D)	1,710 x 1,030 x 87.7 mm
Package Dimensions	1,860 x 1,120 x 185 mm
Set Weight	48.9 kg
Package Weight	60.8 kg
VESA Mount	800 x 400 mm
Bezel Width	17.2 mm
Bezel Color	Black
Frame Material	Aluminium
Protection Glass	Yes
Orientation	Landscape
Temperature Range	0°C ~ 40°C
Humidity	10 ~ 80%, non-condensing
EDLA Certified	Yes
EMC	FCC CFR Title 47, Part 15, Subpart B / EN55032:2015+A11:2020
Safety	IEC62368-1 / UL62368-1 / IEC60950-1 / IS13252
Security	WFA / WPA / WPA2 / WPA3

AVAILABLE MODELS

Model	Size	Resolution
WAF	65 Inch	4K UHD
WAF	75 Inch	4K UHD
WAF	86 Inch	4K UHD

WHY CHOOSE SAMSUNG WAF INTERACTIVE DISPLAY

Android-Powered Interactive Ecosystem
Google EDLA Certified Platform
Multi-User Collaboration Infrastructure
40-Point Interactive Touch Technology
Dual Pen Support
Split Screen & Multi-Window Multitasking
Real-Time Annotation & Whiteboarding
Integrated Device Management
Wireless Screen Sharing (Up to 9 Devices)
USB-C 3-in-1 Connectivity (65W PD)
HDMI Out for Extended Displays
Superior Durability & Surge Protection

Looking for Pricing or Bulk Purchase Options?

Samsung WAF Series Interactive Displays

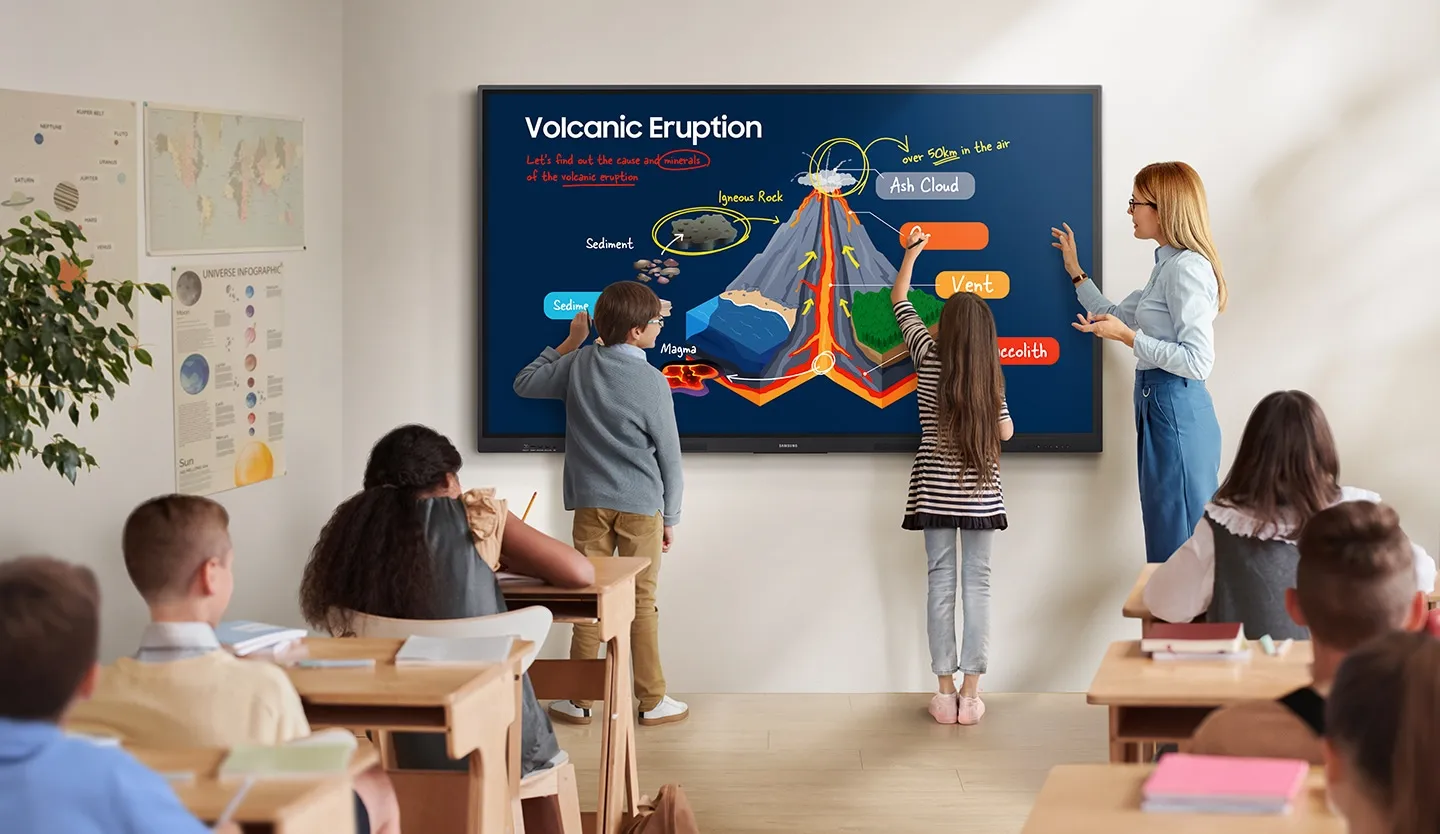

Unlimited Learning Possibilities

The interactive display WAF series, powered by Android OS, enhances education with Google services and a seamless annotation function. Instantly take notes at any moment and empower students to collaborate independently in separate zones, ushering in a new era of interactive education.
