Samsung VHC-E High Brightness Video Wall
Display 55inch-Commercial Display

Model: VH55C-E

Extreme Narrow Bezel Commercial Video Wall Designed for Enterprise Visualization, Retail Environments, Transportation Infrastructure and High-Impact Commercial Deployments

55" Full HD Commercial Video Wall
700 Nit High Brightness
IPS Panel Technology
24/7 Continuous Operation
Extreme Narrow Bezel Architecture
1.74mm Bezel-to-Bezel Design
Anti-Glare Commercial Panel
IP5X Dust Protection
UHD Daisy Chain Support
178° Wide Viewing Angle
Ultra-Slim 70.4mm Cabinet Depth
RS232C & RJ45 Remote Management

Display Size

55 Inch Commercial Display

The Samsung VHC-E Series Video Wall is engineered for businesses that require high-brightness commercial visualization combined with enterprise-grade reliability and ultra-narrow bezel architecture. Designed for immersive multi-screen deployments, the VHC-E creates highly synchronized video wall environments with minimal visual interruption and exceptional image continuity.

Featuring 700 nit brightness, IPS panel technology, anti-glare commercial coating and 24/7 continuous operation capability, the VHC-E Series is optimized for retail stores, airports, transportation hubs, enterprise communication and public display infrastructure.

Its slim industrial design, wide viewing angle and advanced digital daisy chain support enable businesses to deploy scalable video wall systems with premium commercial aesthetics and centralized content management.

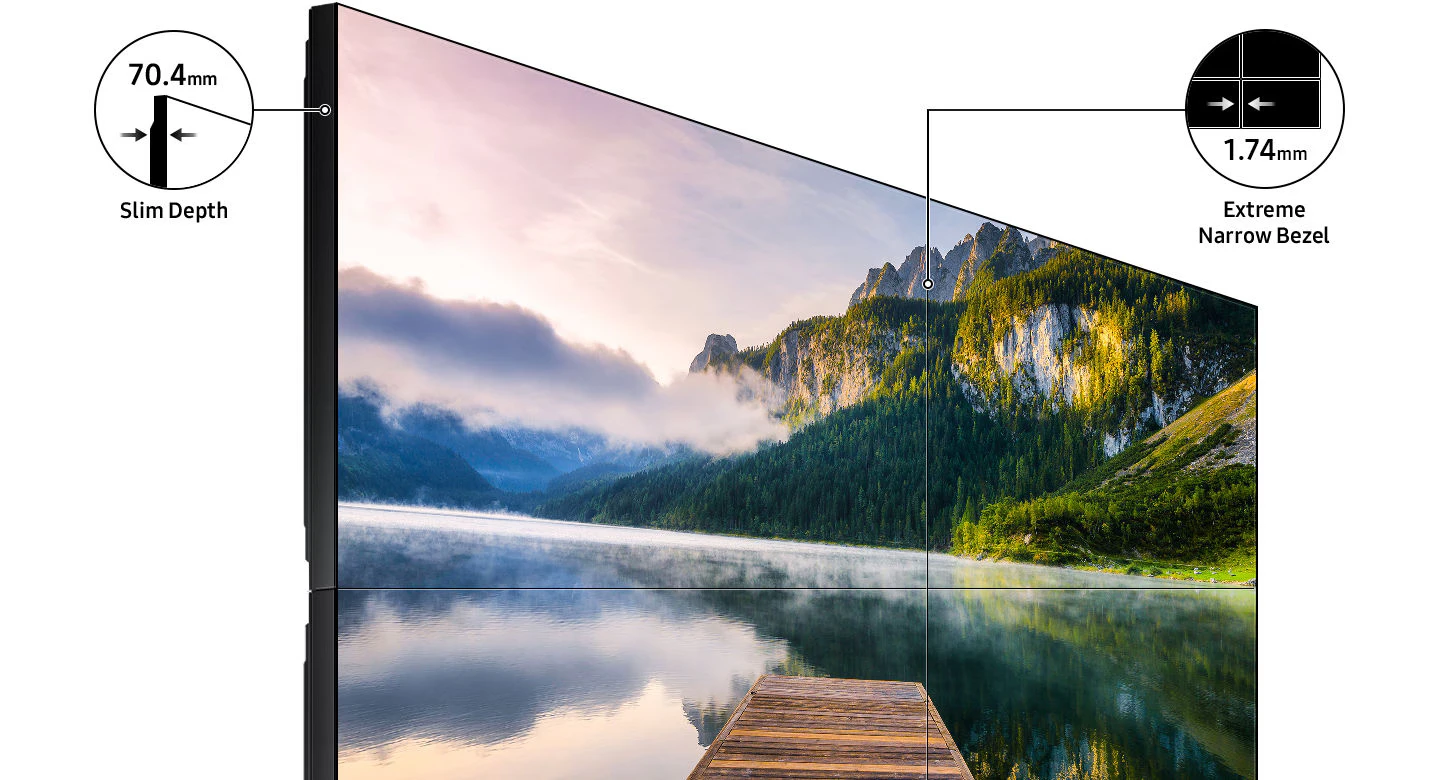

Extreme Narrow Bezel Video Wall Design

The Samsung VHC-E Series is designed with an extreme narrow bezel architecture to create a highly unified multi-display viewing environment. The display features:

1.3mm bezel (upper/left)
0.44mm bezel (right/bottom)
1.74mm bezel-to-bezel structure

This configuration significantly minimizes visual separation between displays, allowing businesses to create immersive commercial visualization systems with improved image continuity.

High Brightness 700 Nit Commercial Performance

Samsung equips the VHC-E Series with 700 nit brightness to ensure vivid content visibility across brightly illuminated commercial environments. The display maintains strong readability and vibrant image performance throughout retail spaces, enterprise lobbies, airports and public infrastructure.

Its commercial-grade brightness architecture ensures impactful visual communication even under challenging ambient lighting conditions.

IPS Technology with Wide Viewing Angle

The VHC-E uses IPS panel technology to maintain consistent image quality and accurate color reproduction from multiple viewing directions. With a 178– wide viewing angle, audiences can experience clear visuals and vivid colors even when viewing from side positions.

This makes the VHC-E ideal for high-traffic commercial environments where viewers approach content from multiple angles throughout the day.

24/7 Continuous Enterprise Operation

Built specifically for commercial deployment environments, the Samsung VHC-E Series supports continuous 24/7 operation for mission-critical visualization systems.

Its enterprise-grade internal architecture ensures stable long-duration performance across:

retail infrastructure
transportation systems
public communication
corporate environments
enterprise display networks

Samsung’s optimized thermal engineering helps maintain operational stability during extended usage cycles.

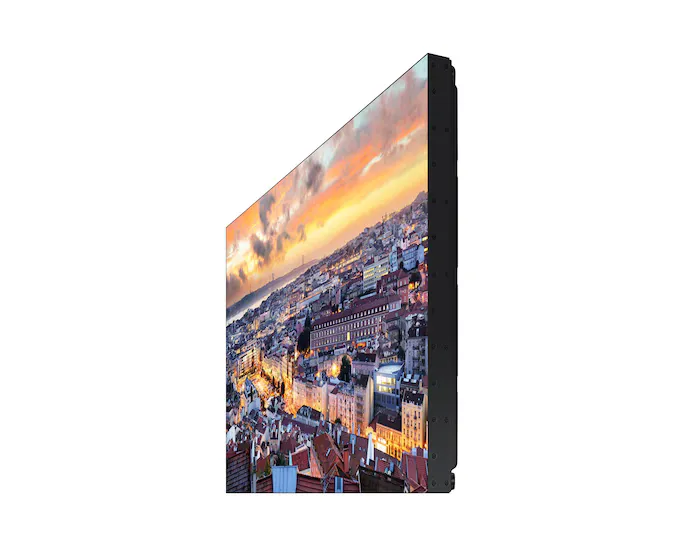

Slim 70.4mm Cabinet Design

The VHC-E Series features a slim 70.4mm cabinet depth, allowing businesses to create clean and elegant video wall installations within modern commercial environments.

The slim chassis improves installation flexibility while maintaining premium architectural aesthetics for enterprise visualization deployments.

Non-Glare Commercial Display Technology

Samsung integrates advanced anti-glare panel technology into the VHC-E Series to maintain accurate content visibility throughout varying lighting environments. The non-glare commercial coating distributes reflected light evenly across the display surface to improve readability and visual comfort.

Combined with high contrast performance and 24/7 runtime capability, the display delivers clear communication throughout day and night business operations.

UHD Daisy Chain Synchronization

The VHC-E supports DisplayPort 1.2 digital daisy chain architecture with UHD synchronization support for scalable enterprise deployment.

Supported infrastructure capabilities include:

Video Wall Daisy Chain (10 × 10)
UHD Resolution Support
HDCP Compatibility
Multi-Display Synchronization
Centralized Enterprise Management

This enables businesses to create large-scale synchronized video wall systems with simplified content distribution infrastructure.

Mobile White Balance Calibration

Samsung Color Expert Pro Mobile enables simplified white balance calibration for video wall environments using mobile devices. This technology helps maintain consistent color uniformity across multiple displays within large-format installations.

The calibration system improves deployment efficiency for retail branding, immersive digital environments and enterprise visualization infrastructure.

Enterprise Reliability & Protection

The VHC-E Series is IP5X certified for improved dust resistance in professional commercial environments. Samsung also integrates EMC Class B compliance standards and enterprise-grade packaging durability for reliable business deployment.

Its enterprise-focused construction ensures dependable operation across demanding commercial infrastructures.

TECHNICAL SPECIFICATIONS

Display Specifications

Screen Size: 55 Inch
Resolution: 1920 × 1080
Panel Type: IPS
Brightness: 700 Nit
Contrast Ratio: 1000:1
Dynamic Contrast Ratio: 140,000:1
Viewing Angle: 178° / 178°

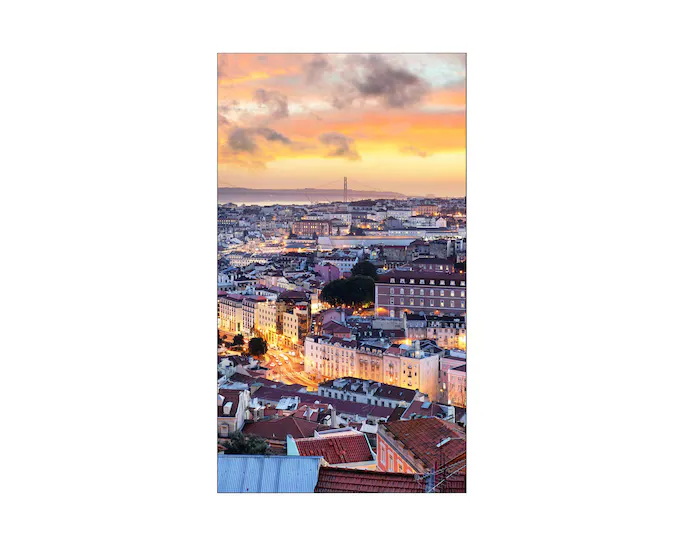

Orientation: Landscape / Portrait
Haze: 28%
Operation Time: 24/7

Bezel Specifications

Bezel-to-Bezel: 1.74mm
Upper/Left: 1.3mm
Right/Bottom: 0.44mm
Extreme Narrow Bezel Architecture

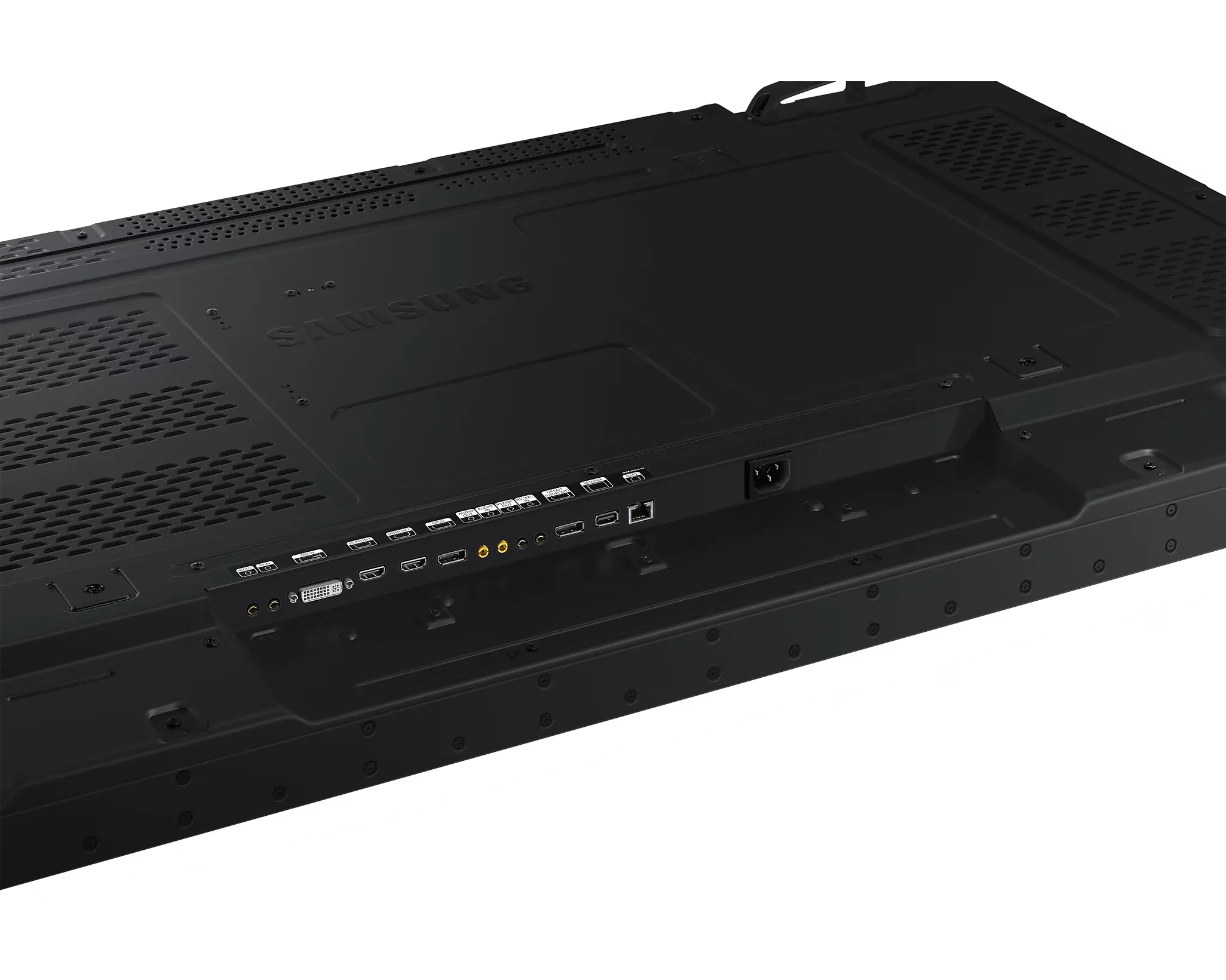

Connectivity

Input
HDMI 2.0 ×2
DVI-D
DisplayPort 1.2
Stereo Mini Jack

Output
DP 1.2 Loop-Out
Stereo Mini Jack

External Control
RS232C In/Out
RJ45 LAN Control

Mechanical Specifications

Cabinet Depth: 70.4mm
VESA Mount: 600 × 400
Weight: 19.5 kg

Power Specifications

Power Supply: AC 100-240V
Maximum Consumption: 250W
Typical Consumption: 145W
Sleep Mode: Less than 0.5W

CERTIFICATIONS

IP5X Certified
EMC Class B
Commercial Safety Certified

AVAILABLE MODELS

Model	Size	Brightness
VH55C-E	55 Inch	700 Nit

WHY CHOOSE SAMSUNG VHC-E VIDEO WALL

Extreme Narrow Bezel Architecture
High Brightness Commercial Performance
Enterprise Video Wall Infrastructure
24/7 Commercial Reliability
Premium Multi-Screen Synchronization
Anti-Glare Commercial Panel
Wide Viewing Angle IPS Technology
Samsung Enterprise Display Ecosystem

Looking for Pricing or Bulk Purchase Options?

Samsung VHC-E Enterprise High Brightness Video Wall Display – 55 Inch Commercial Display

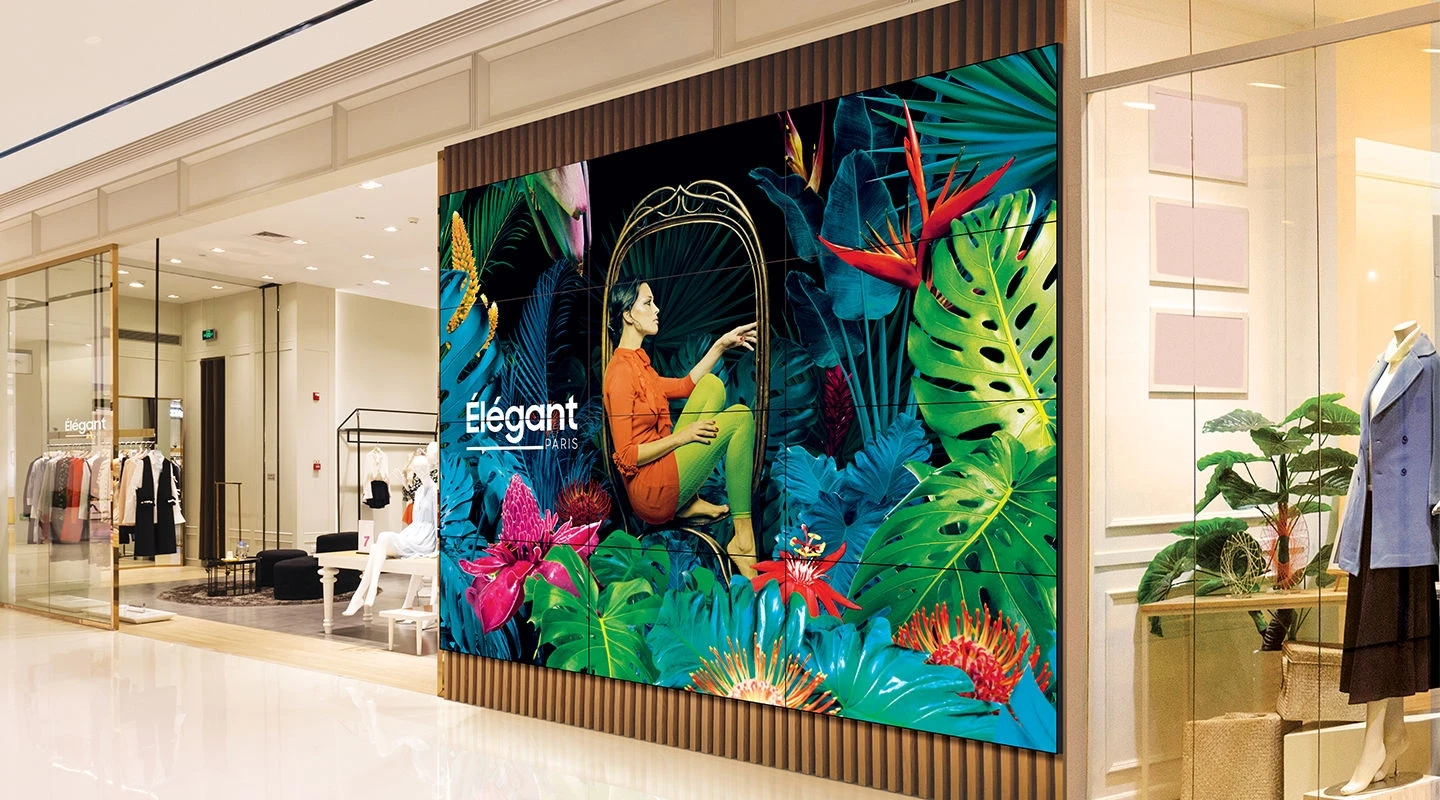

Always-on, space-saving solution with extreme-narrow bezels

See an immersive and dependable viewing experience, 24/7 with Samsung’s VHC-E series. The display’s slim depth and 700 nit brightness ensures highly visible images and legible messages in a wide range of locations from shopping malls to lobbies, meeting rooms, control rooms and more.
