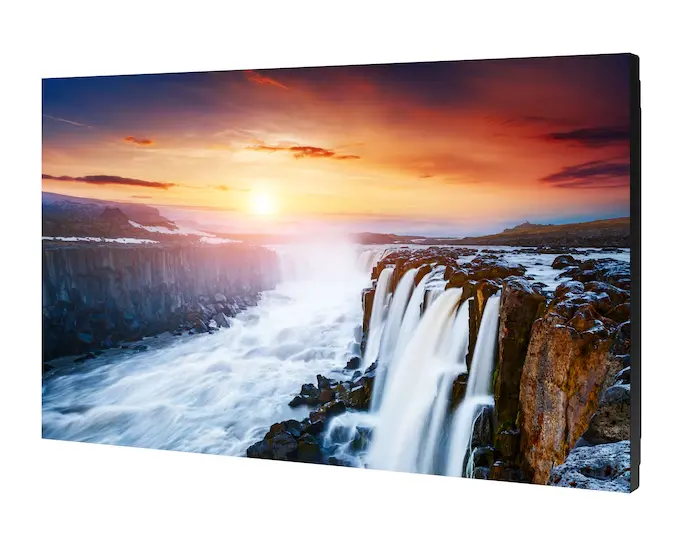

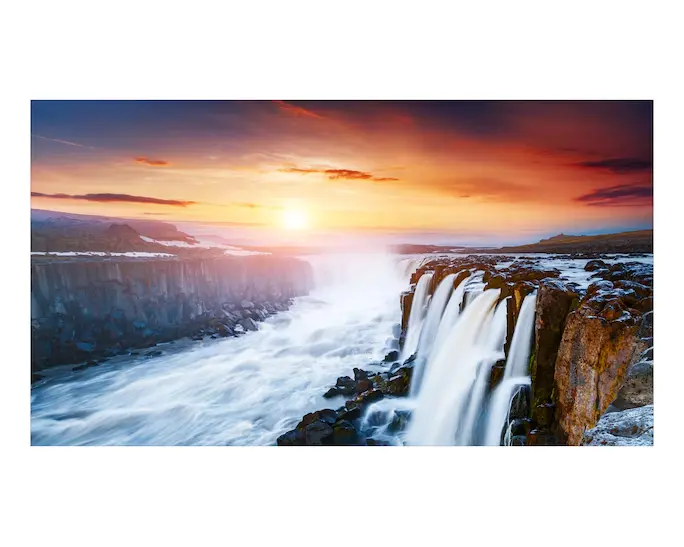

Samsung VHC-R Premium Ultra-Thin Video Wall
Display – 55 Inch Enterprise Commercial Display

Model: VH55C-R

Ultra-Narrow Bezel Video Wall Designed for Premium Retail, Enterprise Visualization, Luxury Experience Centers and High-Impact Commercial Environments

55" Full HD Video Wall Display
Ultra-Thin 0.44mm Even Bezel
700 Nit Brightness
IPS Panel Technology
24/7 Continuous Operation
IP5X Dust Protection
Anti-Glare Commercial Panel
UHD Daisy Chain Support
178° Wide Viewing Angle
Ultra-Slim 69.9mm Cabinet Depth
DisplayPort 1.2 Digital Daisy Chain
RS232C & RJ45 Remote Management

Display Size

55 Inch Commercial Display

The Samsung VHC-R Series Video Wall is engineered for businesses that require immersive large-scale visual communication with minimal bezel distraction and maximum visual impact. Designed with an ultra-thin 0.44mm even bezel structure, the VHC-R creates a near-seamless video wall experience for luxury retail, corporate environments, airports, experience centers and enterprise visualization deployments.

With 700 nit brightness, IPS panel technology, anti-glare coating and 24/7 continuous operation capability, the VHC-R Series delivers reliable commercial performance for mission-critical business environments. Samsung’s ultra-slim cabinet depth and advanced video wall synchronization technology allow businesses to create sophisticated display infrastructures with premium aesthetics and uninterrupted viewing continuity.

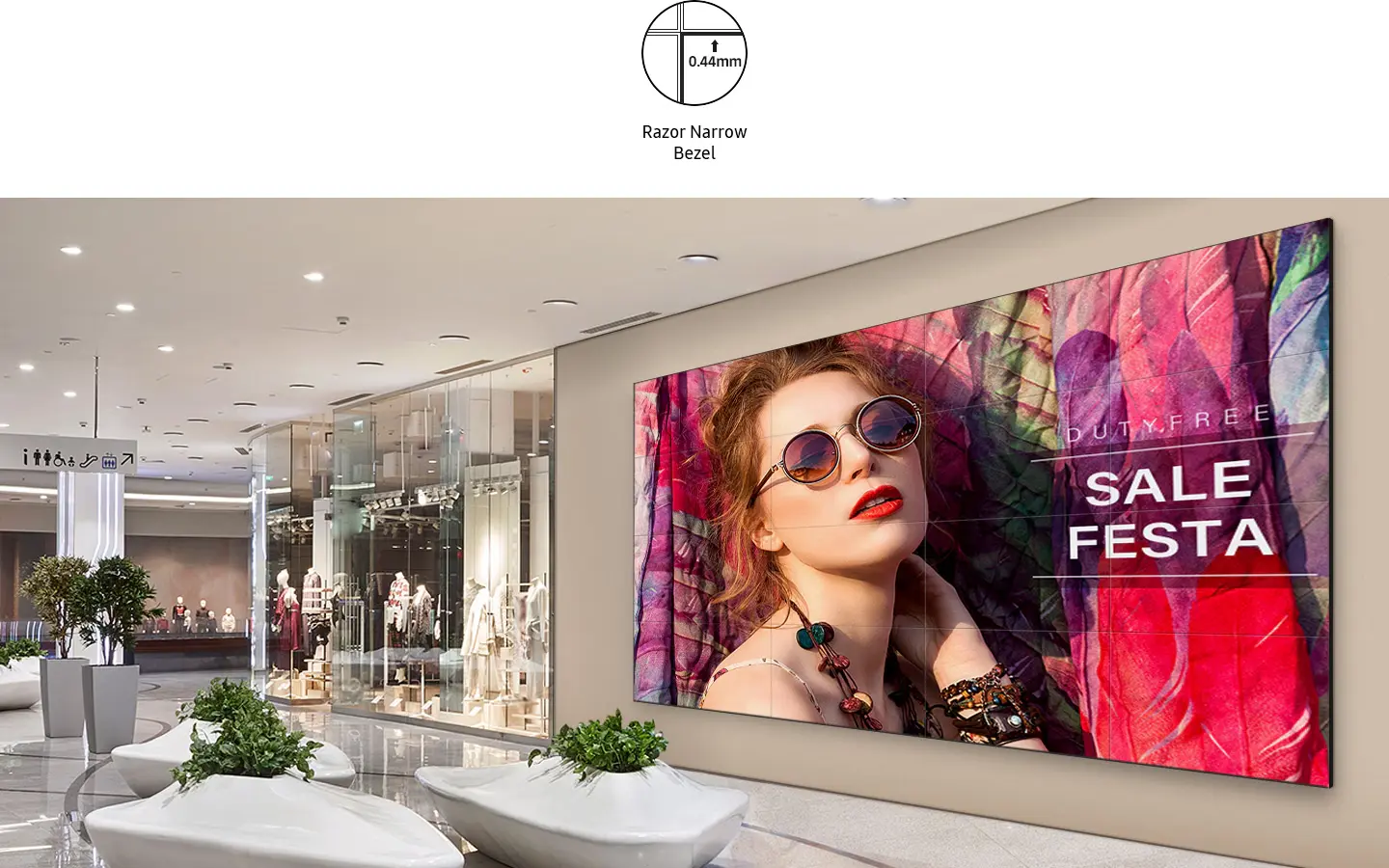

Ultra-Thin 0.44mm Bezel Design

The Samsung VHC-R Series is designed to create an immersive near-seamless video wall experience with an ultra-thin 0.44mm even bezel structure. By minimizing visual interruptions between displays, the VHC-R delivers a highly unified large-format visual environment ideal for luxury retail, enterprise communication and premium digital installations.

The narrow bezel architecture enables businesses to deploy large multi-screen display infrastructures while maintaining visual continuity across the entire wall. This allows viewers to focus entirely on the displayed content without visible distractions between panels.

Premium 700 Nit Commercial Brightness

Built for demanding commercial environments, the VHC-R Series delivers 700 nit brightness for clear and impactful content visibility. The high-brightness panel ensures vibrant image reproduction across indoor business environments including retail spaces, airports, corporate lobbies and public information systems.

Combined with Samsung’s anti-glare commercial panel technology, the display maintains image clarity even under strong ambient lighting conditions.

IPS Panel with Wide Viewing Angle

Samsung integrates IPS panel technology into the VHC-R Series to ensure consistent color accuracy and image quality from multiple viewing positions. The display supports a 178° viewing angle, allowing audiences to experience clear visuals even when viewing from side positions.

This makes the VHC-R ideal for public installations, high-traffic environments and large commercial spaces where audiences approach content from multiple directions.

24/7 Continuous Commercial Operation

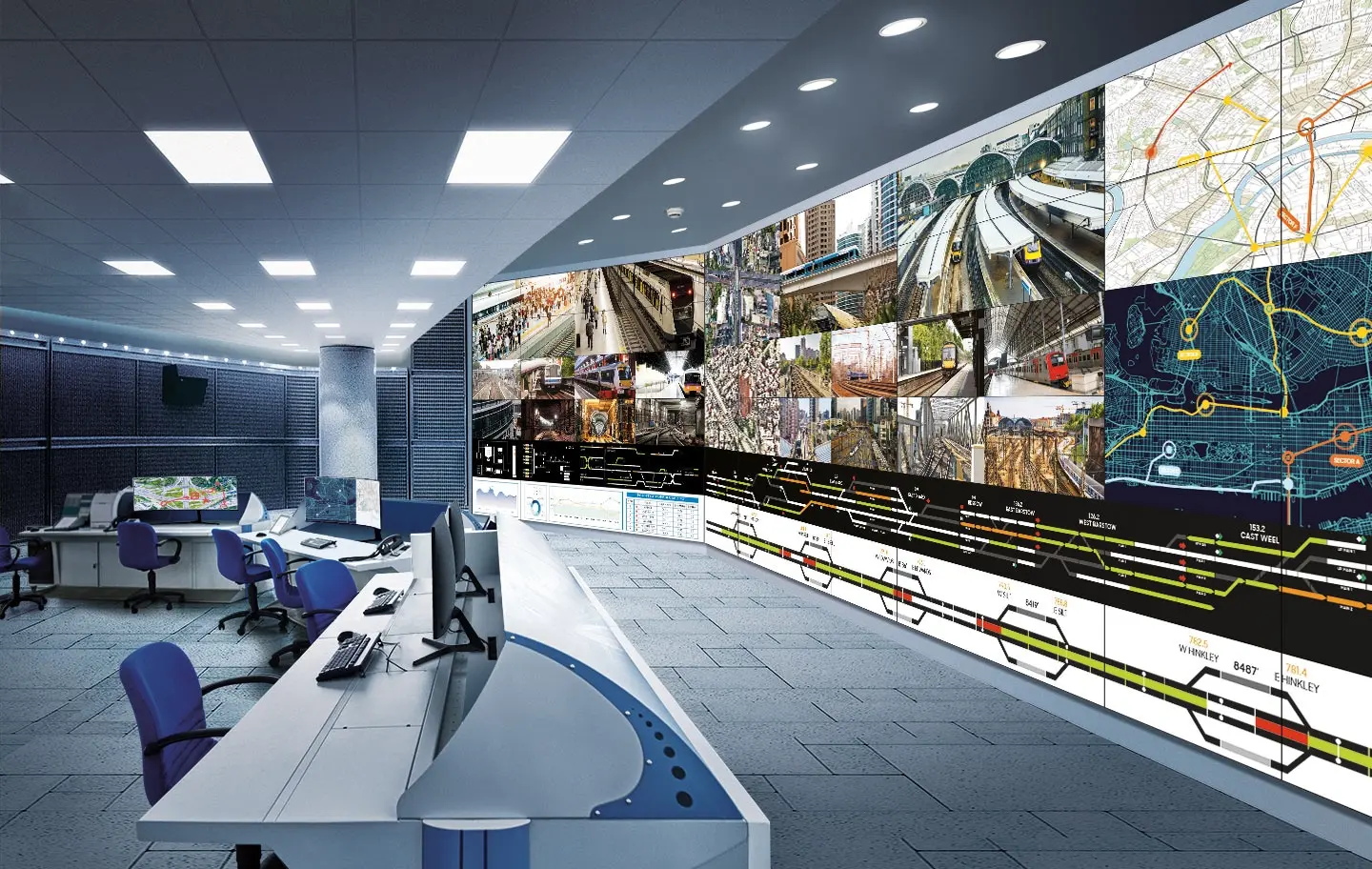

The VHC-R Series is built specifically for enterprise and commercial deployments requiring continuous operation. With 24/7 runtime support, the display is optimized for environments that demand uninterrupted performance including control centers, airports, retail infrastructure and corporate communication systems.

Samsung’s commercial-grade engineering ensures stable long-duration operation with reliable thermal management and enterprise durability.

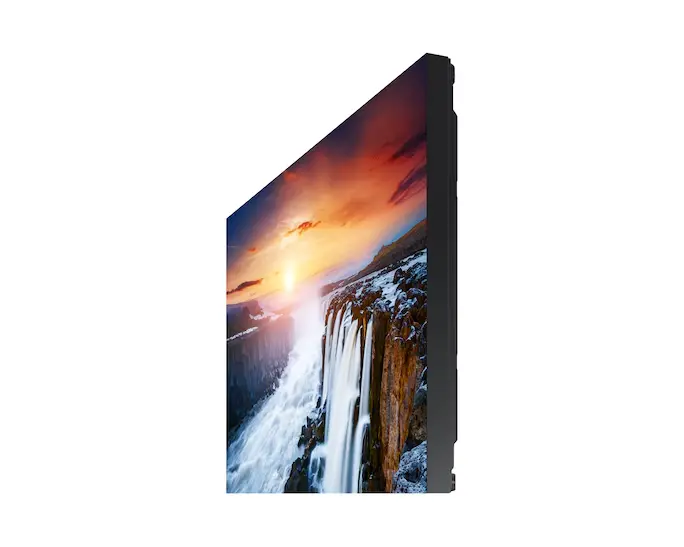

Ultra-Slim Cabinet Depth

The VHC-R features an exceptionally slim 69.9mm cabinet depth, allowing clean and elegant installations in modern commercial environments. The thin chassis design enables seamless wall integration while maintaining a premium architectural appearance.

Its slim industrial design provides businesses with greater flexibility for installation across luxury interiors, retail environments and enterprise visualization projects.

Non-Glare Commercial Display Technology

Samsung’s anti-glare commercial display technology distributes light evenly across the screen surface to maintain image clarity under varying lighting conditions. Combined with high contrast performance, the display ensures accurate content visibility throughout the day and night.

This makes the VHC-R Series suitable for premium retail storefronts, transportation infrastructure and brightly lit commercial environments.

Advanced Video Wall Synchronization

The VHC-R Series supports DisplayPort 1.2 digital daisy chain functionality with UHD resolution support, enabling synchronized multi-display deployment across large video wall infrastructures.

Samsung’s video wall architecture supports:

Video Wall Daisy Chain (10 × 10)
UHD Content Synchronization
HDCP Support
Remote Multi-Display Management

This allows businesses to create scalable enterprise visualization systems with centralized content delivery and simplified infrastructure management.

Mobile Calibration Technology

Samsung Color Expert Pro Mobile enables simplified white balance calibration for video wall deployments using mobile devices. The calibration system helps maintain consistent color reproduction across multiple displays, ensuring visual uniformity throughout the video wall environment.

This feature is especially useful for retail branding walls, digital galleries and immersive enterprise display systems.

Enterprise Durability & Protection

The VHC-R Series is engineered for enterprise environments with IP5X certification for enhanced dust protection. Samsung also integrates enterprise-grade electromagnetic compliance standards and robust packaging durability for reliable commercial deployment.

The display is designed to operate reliably in high-traffic commercial spaces and professional installation environments.

TECHNICAL SPECIFICATIONS

Display Specifications

Screen Size: 55 Inch
Resolution: 1920 × 1080
Panel Type: IPS
Brightness: 700 Nit
Contrast Ratio: 1100:1
Dynamic Contrast Ratio: 140,000:1
Viewing Angle: 178° / 178°
Orientation: Landscape / Portrait
Haze: 28%
Operation Time: 24/7

Bezel Specifications

Even Bezel Width: 0.44mm
Ultra-Thin Video Wall Design
Near-Seamless Multi-Display Viewing

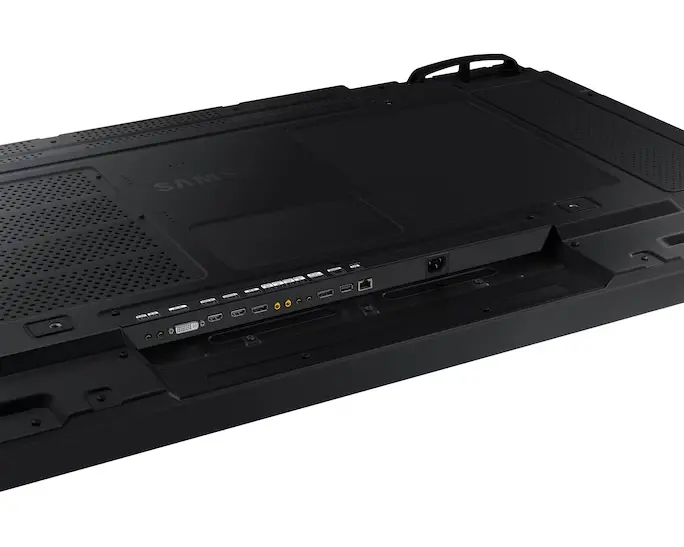

Connectivity

Input
HDMI 2.0 ×2
DVI-D
DisplayPort 1.2
Stereo Mini Jack

Output
DP 1.2 Loop-Out
Stereo Mini Jack

External Control
RS232C In/Out
RJ45 LAN Control

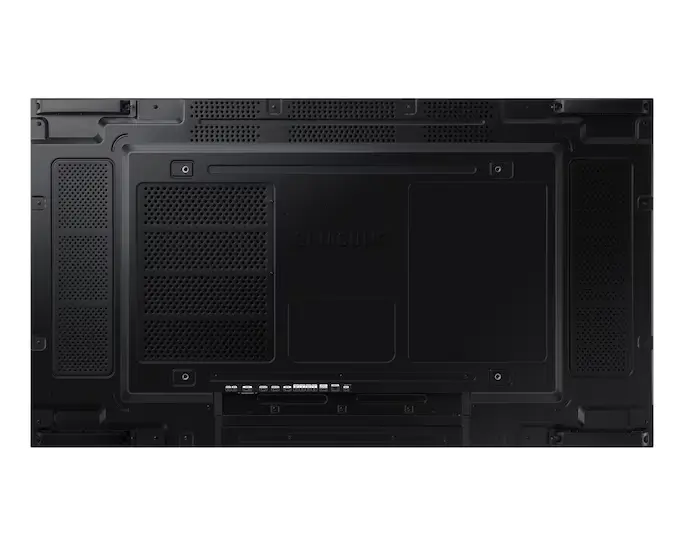

Mechanical & Power Specifications

Mechanical Specifications
Cabinet Depth: 69.9mm
VESA Mount: 600 × 400
Weight: 16.8 kg

Power Specifications
Power Supply: AC 100-240V
Maximum Consumption: 250W
Typical Consumption: 155W
Sleep Mode: Less than 0.5W

CERTIFICATIONS

IP5X Certified
EMC Class B
Commercial Safety Certified

AVAILABLE MODELS

Samsung VHC-R Series Model Lineup

Model	Size	Brightness
VH55C-R	55 Inch	700 Nit

WHY CHOOSE SAMSUNG VHC-R VIDEO WALL

Ultra-Thin Premium Bezel Design
Enterprise-Grade Reliability
24/7 Commercial Operation
Seamless Multi-Screen Experience
Premium Retail & Corporate Positioning
High Brightness Commercial Visibility
Advanced Video Wall Synchronization
Professional Samsung Signage Ecosystem

Looking for Pricing or Bulk Purchase Options?

Samsung VHC-R Premium Ultra-Thin Video Wall Display – 55 Inch Enterprise Commercial Display

Seamless video walls with razor-thin bezels

With an exceptionally narrow bezel measuring just 0.04 cm and equipped with Samsung’s advanced picture enhancement technology along with wide viewing angles, the VHC-R delivers an impactful and seamless experience. Its modern, slim design allows the display to blend into any business environment.
