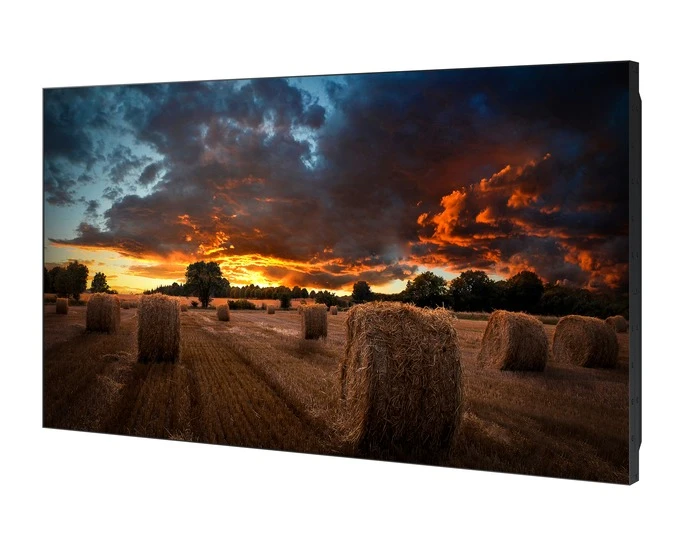

Samsung VMB-U Control Room Video Wall
Display 55inch-Commercial Display

Model No.: VM55B-U

Ultra Narrow Bezel Control Room Video Wall Designed for Enterprise Monitoring, Surveillance Infrastructure, Transportation Command Centers and Mission-Critical Visualization Environments

55" Full HD Control Room Video Wall
500 Nit Commercial Brightness
IPS Panel Technology
24/7 Continuous Enterprise Operation
Ultra Narrow Bezel Architecture
2.25mm / 1.25mm Bezel Design
Anti-Glare Commercial Panel
IP5X Dust Protection
UHD Daisy Chain Synchronization
178° Wide Viewing Angle
Enterprise Monitoring Infrastructure
RS232C & RJ45 Remote Management

Display Size

55 Inch Commercial Display

The Samsung VMB-U Series Video Wall is engineered for mission-critical enterprise visualization environments that require synchronized multi-display performance, ultra-narrow bezel precision and reliable 24/7 operational stability. Designed for control rooms, command centers, surveillance infrastructures, transportation monitoring and enterprise communication environments, the VMB-U delivers seamless large-format visualization with minimized screen interruption and professional-grade image continuity.

Featuring commercial 500 nit brightness, IPS panel technology, anti-glare commercial coating and advanced video wall synchronization capability, the VMB-U Series enables organizations to deploy scalable control room visualization systems with clear content visibility and centralized operational management.

Samsung’s UHD digital daisy chain infrastructure, wide viewing angle architecture and enterprise-grade display reliability make the VMB-U ideal for security operations, infrastructure monitoring, industrial supervision and real-time enterprise communication systems.

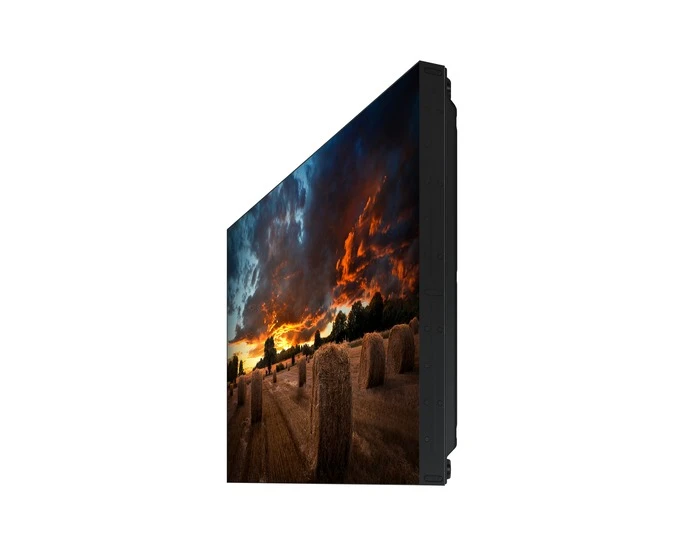

Ultra Narrow Control Room Bezel Design

The Samsung VMB-U Series is designed with ultra narrow bezel architecture for highly synchronized enterprise video wall environments. The display features:

2.25mm bezel (upper/left)
1.25mm bezel (right/bottom)
Minimized multi-screen visual interruption
Optimized control room synchronization

This precision-engineered bezel structure allows organizations to create immersive monitoring environments with improved visual continuity across multiple displays, making the VMB-U highly suitable for command centers and mission-critical monitoring infrastructures.

Commercial 500 Nit Brightness

The VMB-U Series delivers 500 nit commercial brightness for reliable content visibility across enterprise monitoring and communication environments. Samsung’s commercial display technology ensures consistent image clarity and operational readability for:

control rooms
transportation monitoring
surveillance centers
utility operations
industrial visualization systems
enterprise command environments

Its balanced brightness infrastructure supports continuous operational visibility within professional indoor deployment environments.

IPS Technology with 178° Viewing Angle

Samsung integrates IPS panel technology into the VMB-U Series to maintain accurate colors, image consistency and wide-angle visibility across large-format video wall deployments.

With 178° horizontal and vertical viewing angles, the display maintains clear content readability even from side viewing positions. This capability is critical for collaborative operational environments where multiple personnel monitor content simultaneously.

The IPS architecture improves enterprise visualization consistency across command centers, monitoring hubs and public communication infrastructures.

24/7 Continuous Enterprise Operation

The Samsung VMB-U Series is engineered for uninterrupted enterprise operation in environments requiring long-duration display performance and operational reliability.

Samsung’s commercial-grade architecture supports stable 24/7 runtime across:

control room infrastructures
security monitoring environments
transportation command systems
industrial supervision centers
network operation centers
enterprise communication systems

Its optimized internal thermal management infrastructure supports dependable long-duration visualization performance.

Anti-Glare Commercial Panel Technology

Samsung integrates non-glare commercial panel technology into the VMB-U Series to improve visibility under varying ambient lighting conditions.

The anti-glare coating distributes reflected light evenly across the display surface, helping maintain image clarity throughout day and night operational environments.

Combined with high contrast performance and IPS panel consistency, the VMB-U delivers stable visual communication for professional enterprise deployment infrastructures.

UHD Daisy Chain Synchronization Infrastructure

The VMB-U Series supports DisplayPort 1.2 digital daisy chain functionality with UHD synchronization support for scalable enterprise video wall deployment.

Supported infrastructure capabilities include:

Video Wall Daisy Chain (10 × 10)
UHD Resolution Support
HDCP Compatibility
Multi-Display Synchronization
Centralized Enterprise Display Infrastructure

This architecture allows organizations to deploy large-scale synchronized monitoring and communication systems with simplified infrastructure management and centralized visualization control.

Mobile White Balance Calibration

Samsung Color Expert Pro Mobile enables simplified white balance calibration for multi-display enterprise environments using mobile devices.

The calibration infrastructure helps maintain visual consistency and synchronized color performance across large-scale control room and enterprise visualization deployments.

This improves deployment efficiency for mission-critical monitoring systems and commercial display infrastructures.

Enterprise Reliability & IP5X Protection

The Samsung VMB-U Series includes IP5X-certified dust resistance for improved operational reliability in demanding enterprise environments.

Samsung also integrates:

EMC Class A compliance
enterprise-grade durability engineering
commercial operational stability
advanced protection architecture

This enterprise-focused infrastructure supports dependable deployment across professional control room and monitoring applications.

Commercial Monitoring Infrastructure Design

The VMB-U Series combines slim industrial architecture with enterprise-grade deployment flexibility for professional visualization infrastructures.

Its commercial deployment design supports:

control room installations
transportation infrastructure
surveillance command centers
industrial monitoring walls
enterprise operational hubs
security management systems

Samsung’s professional display ecosystem allows organizations to deploy scalable enterprise visualization environments with centralized management capability.

TECHNICAL SPECIFICATIONS

VM46B-U

Screen Size: 46 Inch
Resolution: 1920 × 1080
Brightness: 500 Nit
Panel Type: IPS
Contrast Ratio: 1200:1
Dynamic Contrast Ratio: 45,000:1
Viewing Angle: 178° / 178°

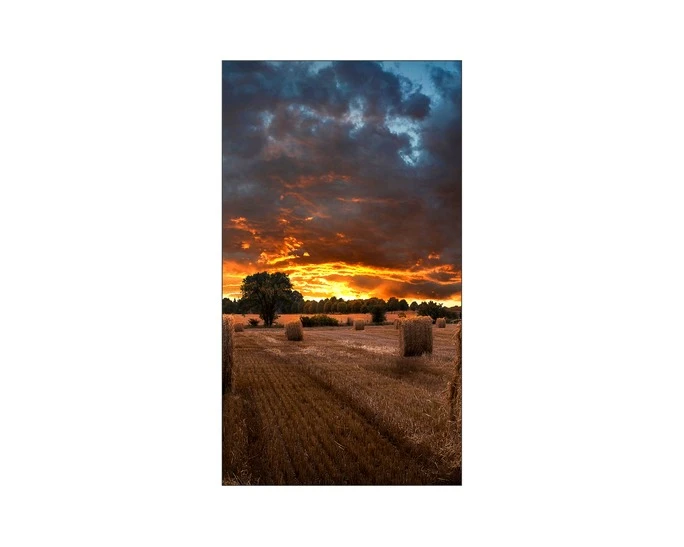

Orientation: Landscape / Portrait
Haze: 25%
Operation Time: 24/7

VM55B-U

Screen Size: 55 Inch
Resolution: 1920 × 1080
Brightness: 500 Nit
Panel Type: IPS
Contrast Ratio: 1200:1
Dynamic Contrast Ratio: 45,000:1
Viewing Angle: 178° / 178°
Orientation: Landscape / Portrait
Haze: 25%
Operation Time: 24/7

BEZEL SPECIFICATIONS

VM46B-U & VM55B-U

Upper/Left: 2.25mm
Right/Bottom: 1.25mm
Ultra Narrow Commercial Video Wall Design

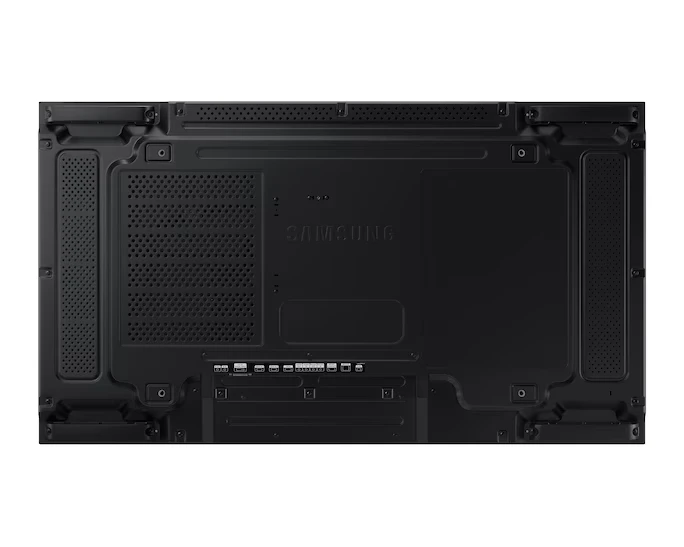

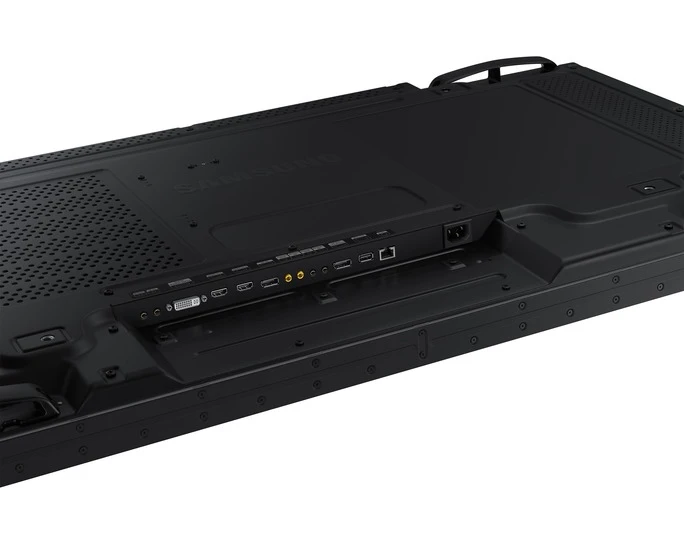

CONNECTIVITY

Input
HDMI 2.0 ×2
DVI-D
DisplayPort 1.2
Stereo Mini Jack

Output
DP 1.2 Loop-Out
Stereo Mini Jack

External Control
RS232C In/Out
RJ45 LAN Control

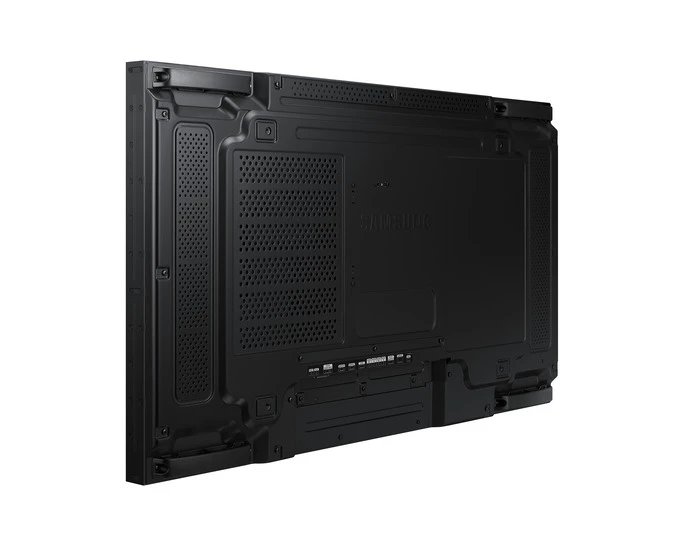

MECHANICAL SPECIFICATIONS

VM46B-U

Cabinet Depth: 69.9mm
VESA Mount: 600 × 400
Weight: 15.7 kg

VM55B-U

Cabinet Depth: 73.1mm
VESA Mount: 600 × 400
Weight: 21.2 kg

POWER SPECIFICATIONS

VM46B-U

Maximum Consumption: 160W
Typical Consumption: 128W

VM55B-U

Maximum Consumption: 220W
Typical Consumption: 165W

General

Power Supply: AC 100-240V
Sleep Mode: Less than 0.5W

CERTIFICATIONS

IP5X Certified
EMC Class A
Commercial Safety Certified
Enterprise Display Compliance Infrastructure

AVAILABLE MODELS

Model	Size	Brightness
VM46B-U	46 Inch	500 Nit
VM55B-U	55 Inch	500 Nit

WHY CHOOSE SAMSUNG VMB-U VIDEO WALL

Ultra Narrow Control Room Video Wall Architecture
Enterprise Monitoring Infrastructure
Reliable 24/7 Commercial Operation
Seamless Multi-Display Synchronization
Anti-Glare Commercial IPS Panel
Wide Viewing Angle Technology
UHD Daisy Chain Infrastructure
IP5X Enterprise Dust Protection
Samsung Professional Display Ecosystem
Centralized Enterprise Visualization Capability

Looking for Pricing or Bulk Purchase Options?

Samsung VMB-U Ultra Narrow Bezel Control Room Video Wall Display 55inch-Commercial Display

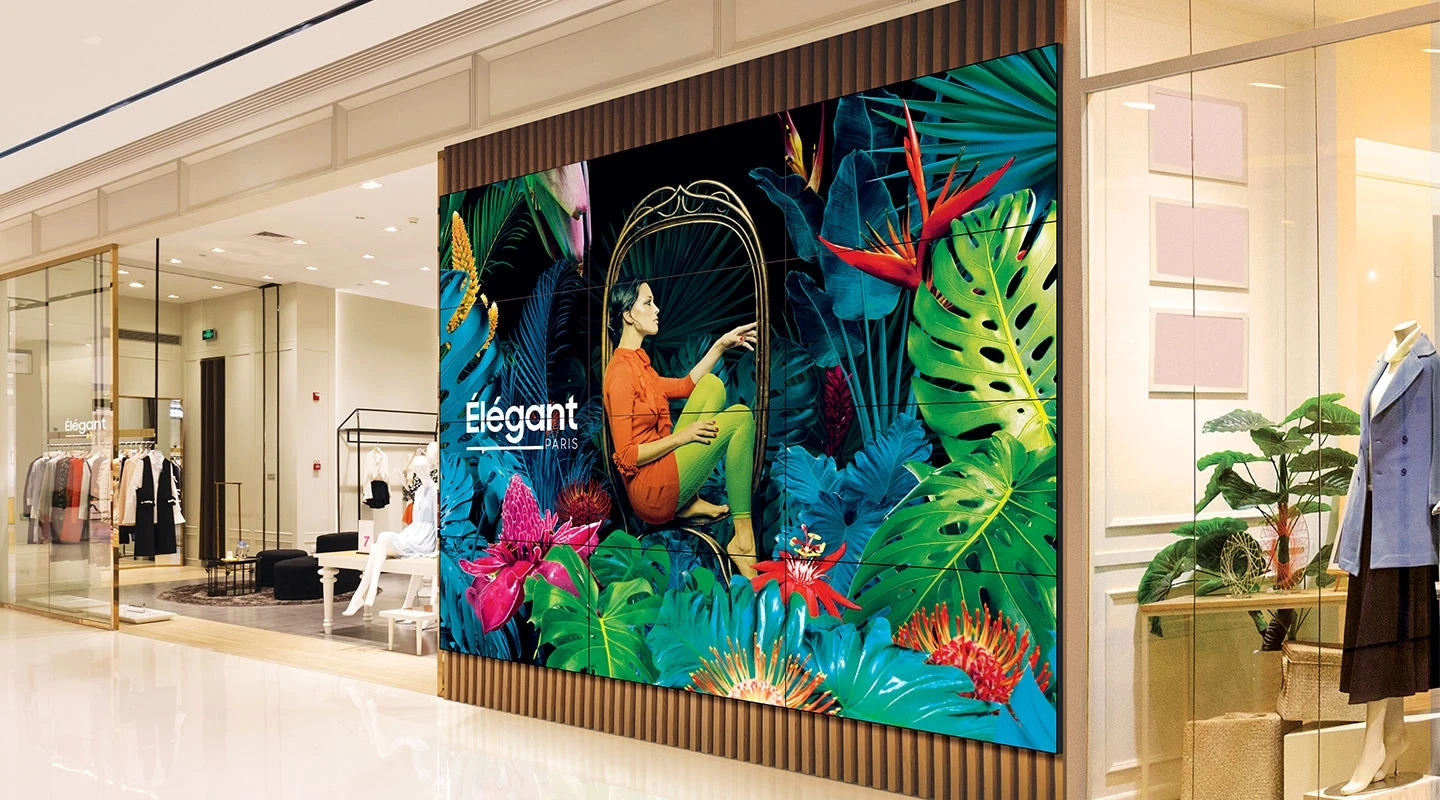

Always-on, space-saving solution with extreme-narrow bezels

See an immersive and dependable viewing experience, 24/7 with Samsung’s VMB-U series. The display’s slim depth and 500 nit brightness ensures highly visible images and legible messages in a wide range of locations from shopping malls to lobbies, meeting rooms, control rooms and more.
