Samsung VMC-R Premium Commercial Video
Wall Display – 55 Inch Enterprise Display

Model: VM55C-R

Ultra-Narrow Bezel Commercial Video Wall Designed for Retail, Corporate Communication, Enterprise Visualization and Large-Scale Commercial Display Environments

55" Full HD Commercial Video Wall
Ultra-Narrow 0.44mm Even Bezel
500 Nit Commercial Brightness
IPS Panel Technology
24/7 Continuous Operation
Anti-Glare Commercial Panel
IP5X Dust Protection
DisplayPort 1.2 Daisy Chain
178° Wide Viewing Angle
Ultra-Slim 69.9mm Cabinet Depth
RS232C & RJ45 Remote Management

Display Size

55 Inch Commercial Display

The Samsung VMC-R Series Video Wall is engineered to deliver immersive large-format commercial visualization with ultra-narrow bezel precision and enterprise-grade reliability. Designed for premium business environments, the VMC-R creates highly synchronized multi-display video wall infrastructures with minimal visual interruption and exceptional content clarity.

Built with Samsung’s commercial IPS technology, 500 nit brightness, anti-glare panel coating and 24/7 continuous runtime support, the VMC-R Series provides reliable performance for retail stores, office environments, transportation hubs, experience centers and enterprise communication deployments.

Its ultra-thin cabinet design, wide viewing angle and UHD daisy chain architecture make the VMC-R an ideal solution for scalable commercial video wall installations.

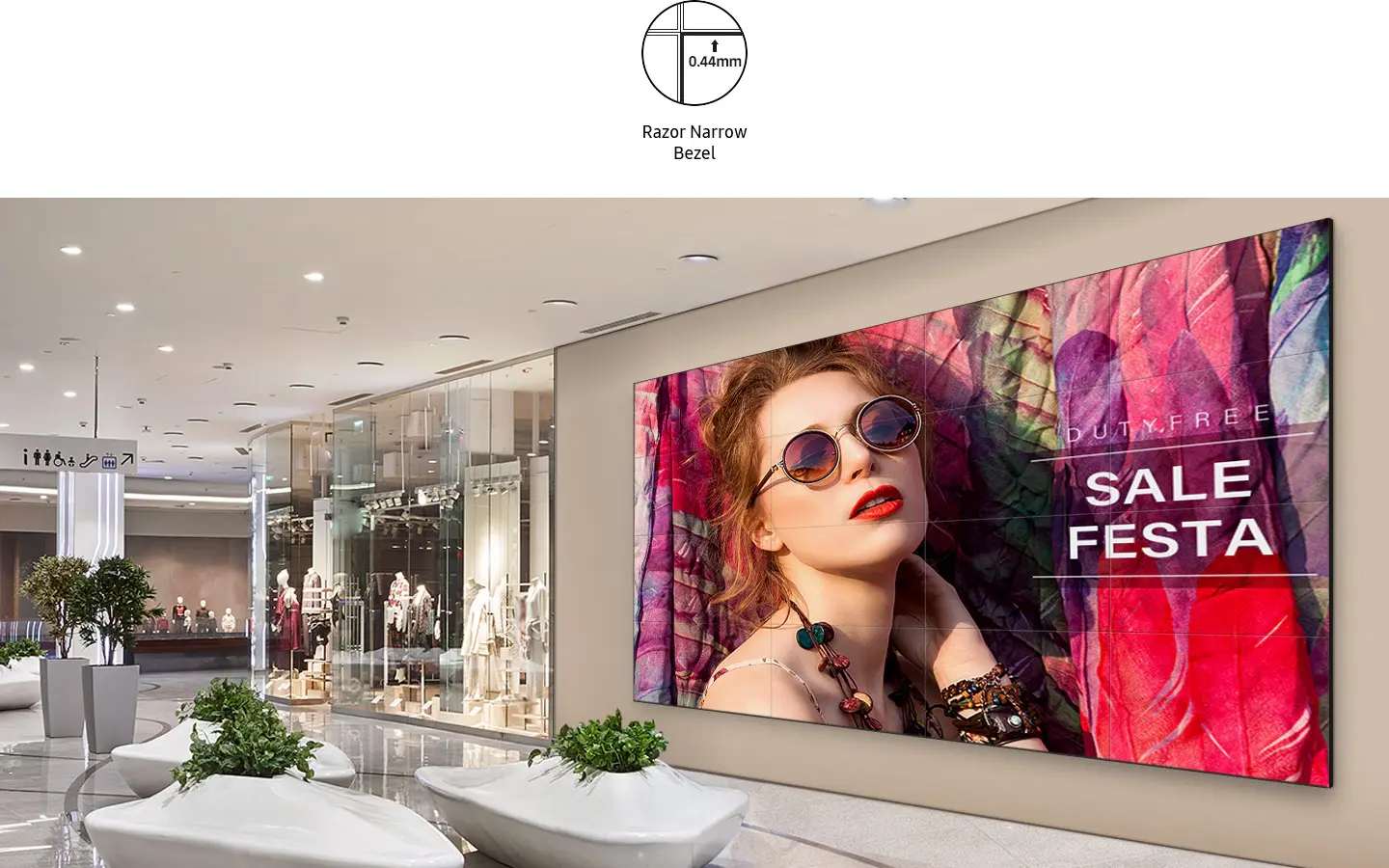

Ultra-Narrow 0.44mm Bezel Design

The Samsung VMC-R Series is designed with an ultra-narrow 0.44mm even bezel structure to create a highly unified multi-screen viewing environment. The minimized bezel separation allows businesses to deploy seamless video wall infrastructures with improved visual continuity and reduced screen distraction.

This narrow bezel architecture helps create immersive digital communication environments across retail spaces, enterprise lobbies and large commercial installations.

Commercial 500 Nit Brightness

Samsung equips the VMC-R Series with 500 nit brightness to ensure clear content visibility in commercial indoor environments. The display maintains vibrant visuals, accurate color reproduction and strong readability across retail, enterprise and public-facing business spaces.

Combined with Samsung’s anti-glare commercial panel technology, the display performs effectively even in brightly illuminated environments.

IPS Technology with Wide Viewing Angle

The VMC-R Series uses IPS panel technology to maintain consistent image quality and accurate colors from multiple viewing positions. With a 178° viewing angle, audiences can experience clear visuals from both side and front viewing perspectives.

This makes the VMC-R ideal for public commercial deployments where audiences interact with content from different angles throughout the day.

24/7 Enterprise Commercial Operation

Designed for enterprise-grade deployment environments, the Samsung VMC-R Series supports continuous 24/7 operation for mission-critical business communication.

Its commercial-grade internal architecture ensures reliable performance for:

retail operations
transportation infrastructure
enterprise visualization
control environments
corporate communication systems

Samsung’s optimized thermal management and durability engineering help maintain stable long-duration operation.

Slim 69.9mm Cabinet Design

The VMC-R features a slim 69.9mm cabinet depth, enabling elegant wall integration across modern commercial environments. Its thin profile allows businesses to deploy large-scale visualization systems while maintaining clean architectural aesthetics.

The slim industrial design helps maximize installation flexibility across retail stores, office spaces and premium digital infrastructure projects.

Non-Glare Commercial Display Technology

Samsung integrates anti-glare panel technology into the VMC-R Series to maintain accurate content visibility under varying ambient lighting conditions. The non-glare commercial coating distributes light evenly across the display surface to improve readability and viewing comfort.

Combined with 24/7 runtime capability and strong contrast performance, the display ensures clear communication throughout business operating hours.

UHD Digital Daisy Chain Support

The Samsung VMC-R supports DisplayPort 1.2 digital daisy chain architecture with UHD resolution support for scalable enterprise video wall deployment.

Supported enterprise capabilities include:

Video Wall Daisy Chain (10 × 10)
UHD Synchronization
HDCP Support
Multi-Display Control
Centralized Content Distribution

This enables businesses to deploy synchronized large-format video wall systems with simplified infrastructure management.

Mobile Color Calibration

Samsung Color Expert Pro Mobile enables simplified white balance calibration using mobile devices. This calibration technology helps maintain color consistency across multi-display environments, improving the overall visual quality of large-format video wall deployments.

The feature is especially useful for premium retail branding, corporate visualization and immersive commercial display environments.

Enterprise Protection & Reliability

The VMC-R Series is designed with IP5X certification for improved dust resistance in commercial environments. Samsung also integrates EMC Class B compliance and enterprise-grade packaging standards for professional deployment reliability.

Its enterprise-focused engineering makes it suitable for long-duration commercial operation across demanding business environments.

TECHNICAL SPECIFICATIONS

Display Specifications
Screen Size: 55 Inch
Resolution: 1920 × 1080
Panel Type: IPS
Brightness: 500 Nit
Contrast Ratio: 1100:1
Dynamic Contrast Ratio: 100,000:1
Viewing Angle: 178° / 178°
Orientation: Landscape / Portrait
Haze: 28%
Operation Time: 24/7

Bezel Specifications

Even Bezel Width: 0.44mm
Ultra-Narrow Video Wall Architecture
Seamless Multi-Display Visualization

Connectivity

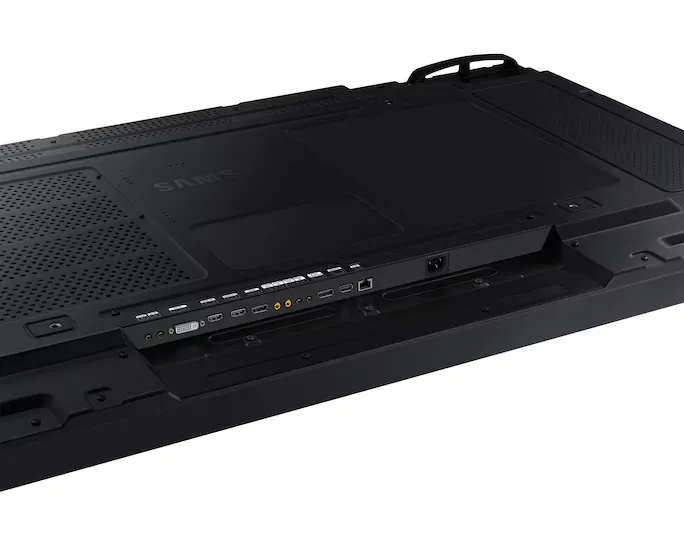

Input
HDMI 2.0 ×2
DVI-D
DisplayPort 1.2
Stereo Mini Jack

Output
DP 1.2 Loop-Out
Stereo Mini Jack

External Control
RS232C In/Out
RJ45 LAN Control

Mechanical Specifications

Cabinet Depth: 69.9mm

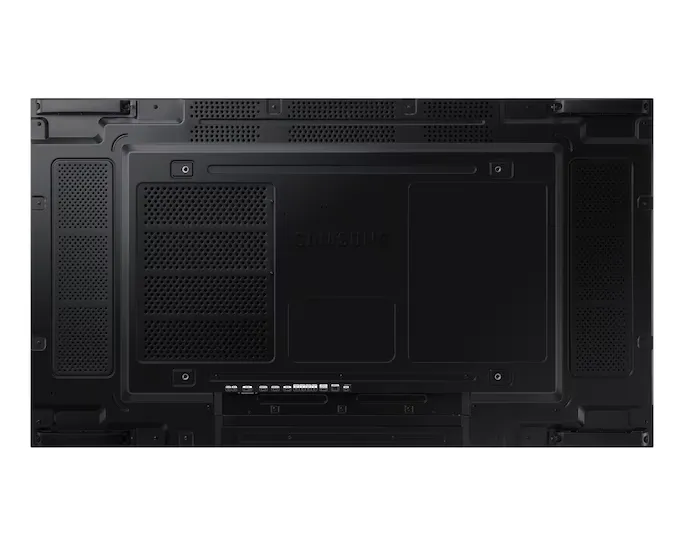

VESA Mount: 600 × 400
Weight: 16.8 kg

Power Specifications

Power Supply: AC 100-240V
Maximum Consumption: 270W
Typical Consumption: 161W
Sleep Mode: Less than 0.5W

CERTIFICATIONS

IP5X Certified
EMC Class B
Commercial Safety Certified

AVAILABLE MODELS

Model	Size	Brightness
VM55C-R	55 Inch	500 Nit

WHY CHOOSE SAMSUNG VMC-R VIDEO WALL

Ultra-Narrow Commercial Bezel Design
Enterprise Video Wall Infrastructure
24/7 Commercial Reliability
Seamless Multi-Screen Visualization
Premium Retail & Corporate Positioning
Advanced Daisy Chain Synchronization
Anti-Glare Commercial Panel
Samsung Enterprise Signage Ecosystem

Looking for Pricing or Bulk Purchase Options?

Samsung VMC-R Premium Commercial Video Wall Display – 55 Inch Enterprise Display

Seamless video walls with razor-thin bezels

With an exceptionally narrow bezel measuring just 0.04 cm and equipped with Samsung’s advanced picture enhancement technology along with wide viewing angles, the VMC-R delivers an impactful and seamless experience. Its modern, slim design allows the display to blend into any business environment.
